This machine is used for thickness sanding, fine sanding, and polishing of plywood, particleboard, MDF, veneer, and secondary processed coated boards, achieving an ideal surface finish.
Specifications
Maximum sanding board width: 40～1300 mm
Sanding board thickness: 2.5～110 mm
Sanding board length: >780 mm
Sanding belt speed: 20、20、16 m/s
Sanding belt size: 1330×2620 mm
Voltage: 380 V
Frequency: 50 Hz
Total motor power: 79.5 kW
Main motor power: 30 kw、22 kw、18.5Kw
Conveyor belt reducer power: 7.5 kW
Lifting motor power: 0.75 kW
Brush roller motor power: 0.75 kW
Vacuum fan (optional): 5.5kw
Infeed speed: 20-50, 50-80 m/min
Compressed air working pressure: 0.6 MPa
Compressed air consumption: 0.2 m3/min
Dust removal fan air volume: 16000 m3/h
Dimensions (L×W×H): 3140×2770×2440
Weight: Approximately 9800 kg
Keyword

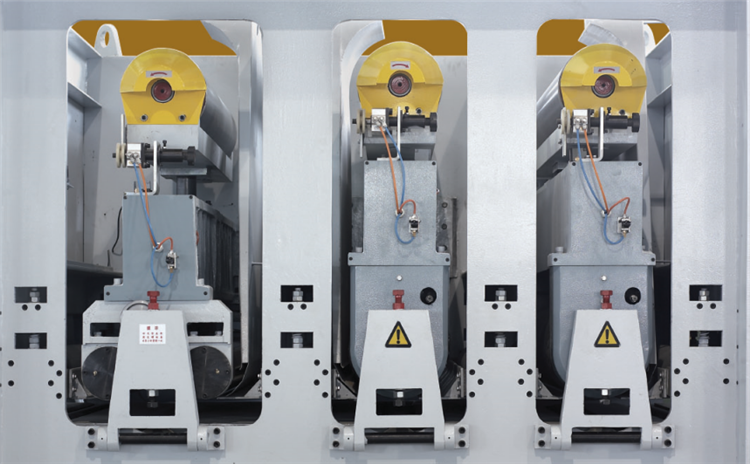

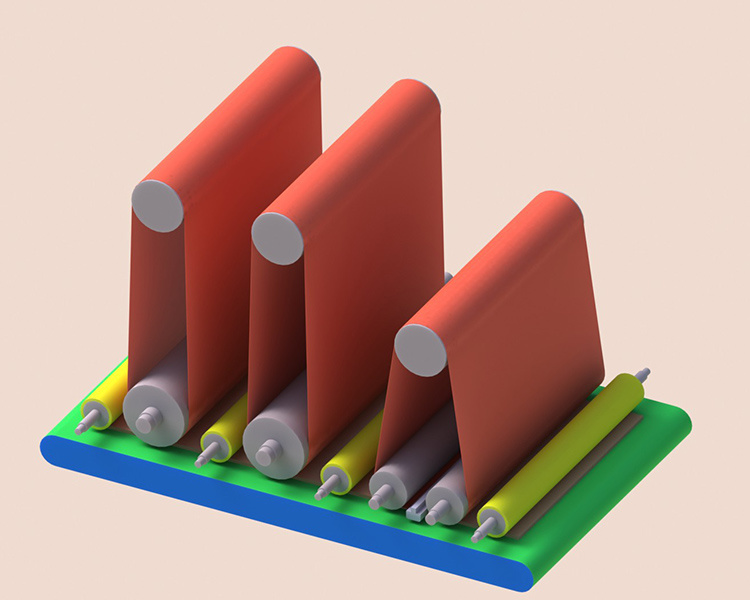

Heavy-duty three-sand frame (roller type) sanding machine BSG1313R-R-P
